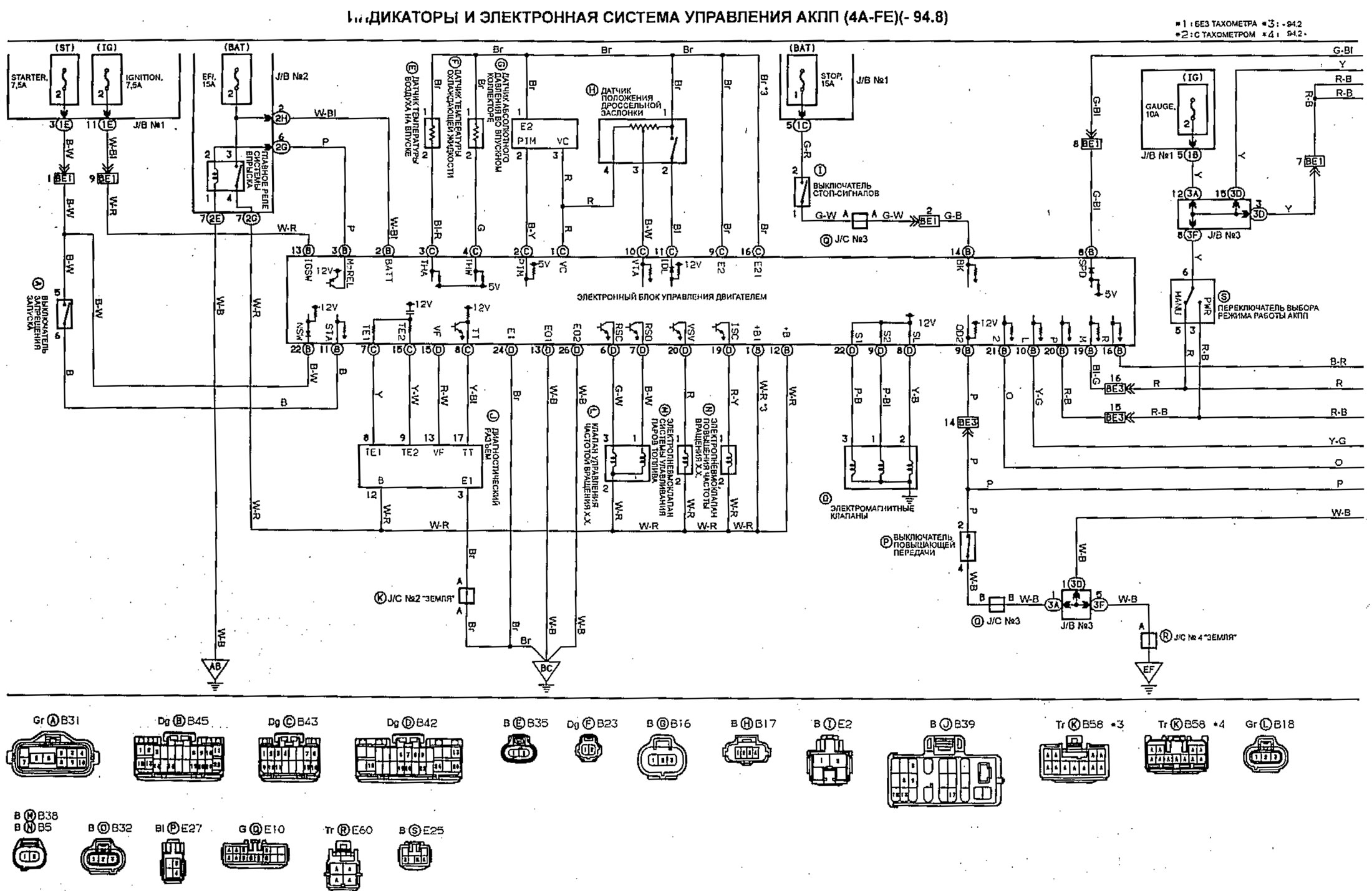

Indicators and electronic control system of automatic transmission (4A-FE) [Toyota Carina T190]

0

Indicators and electronic control system of automatic transmission (4A-FE)

Open a larger image in a new tab »

Open a larger image in a new tab »

[The text is taken from the specified website: www.ToyotaMAN.ru]
