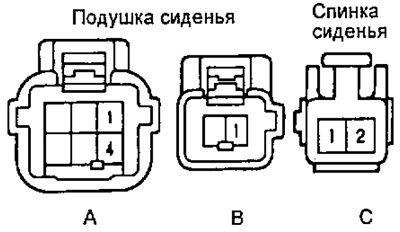

Except SE Extra
- A1 - A4 - there is conductivity
- A1 - B1 - there is conductivity
- A4 - B1 - there is conductivity
- C1 - C2 - there is conductivity

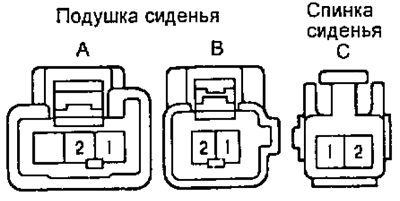

SE Extra
- A1 - A2 - there is conductivity
- A1 - B1 - there is conductivity
- A2 - B1 - there is conductivity
- C1 - C2 - there is conductivity
[The original is this website www.toyotaman.ru]
2. Checking the work.

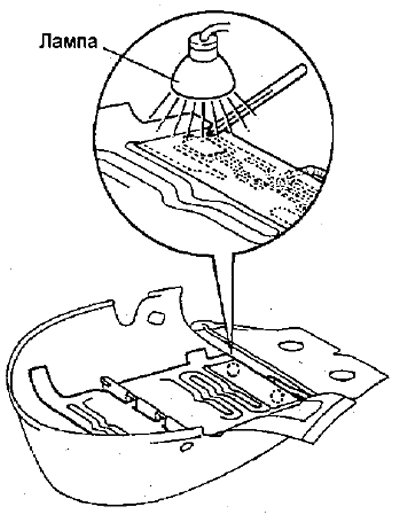

Heat the thermostat and check the conductivity.

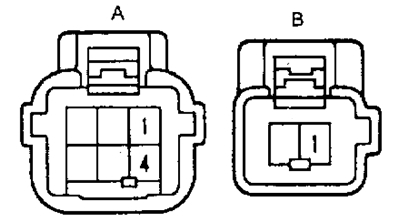

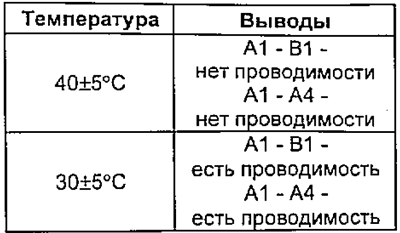

Except SE Extra
 |  |

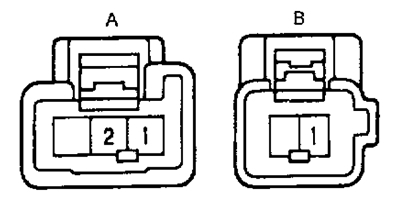

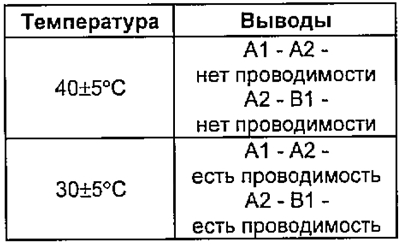

SE Extra
 |  |
