Note: This test helps determine whether the problem is electrical or mechanical in the transmission.

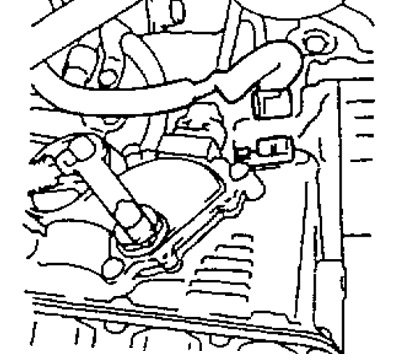

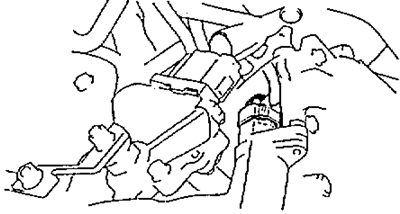

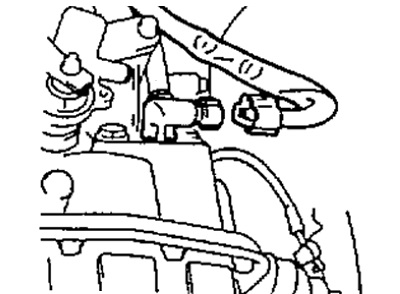

1. Disconnect the solenoid valve connector.
A245E before 1994, A241E
A245E
A540N
2. Gear changes should be performed in accordance with the table "Transmission operating modes in the case of normal operation of solenoid valves (solenoids) and the failure of one or two of them."
Note: If it is difficult to determine the gear engaged on the "L", "2" and "D" ranges, perform the following test:
- - while driving, move the selector to positions "L", "2" and "D". The gear shift should correspond to the position of the lever.
- - if there is a deviation during the switching process, then the fault is in the gearbox itself.
3. Connect the solenoid valve block connector.
4. Clear fault codes.
