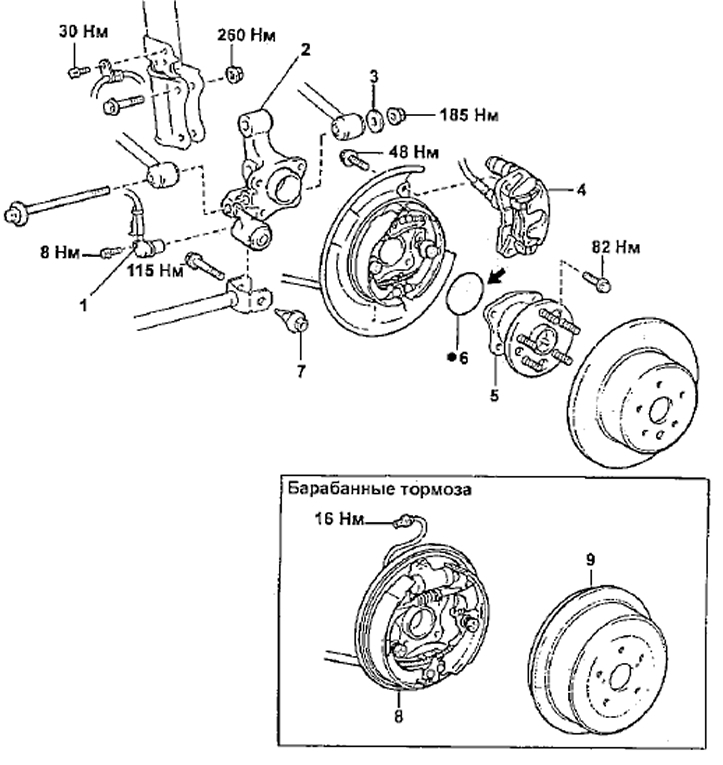

Rear wheel knuckle device (2WD) [Toyota Carina T190]

1 - speed sensor (ABS),
2 - fist,
3 - washer,
4 - brake mechanism support,
5 - rear wheel hub,
6 - O-ring seal,
7 - nut,
8 - brake mechanism,
9 - brake drum.
